Descripción
TORNO 14'' X 40'' PARTE: 2GM-GML-1440HD

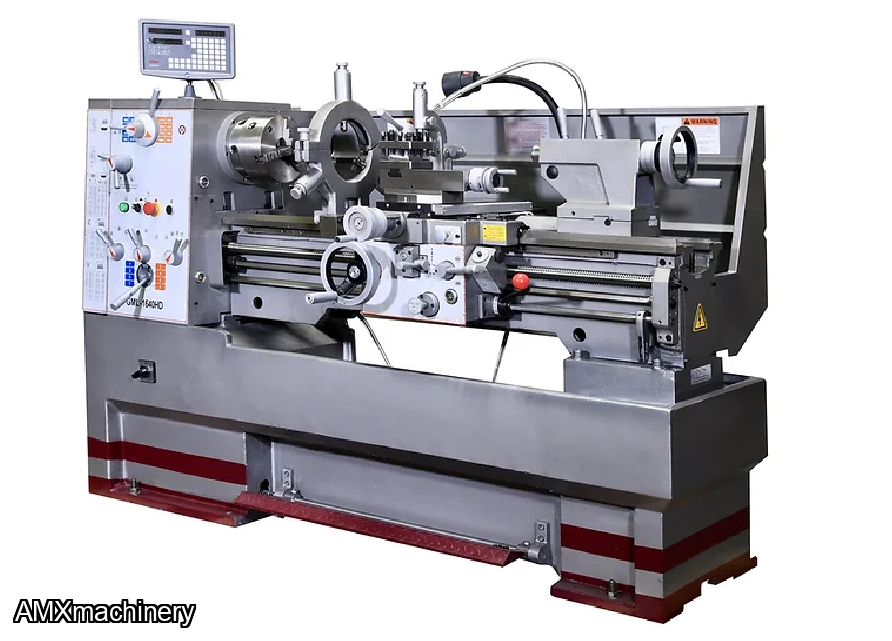

The 14" x 40" Gap Bed Lathe with SINO DRO is the best machine money can buy. Fully equipped with a Taper Attachment, 8” 3-jaw chuck with one set reversible jaws, 10” 4-jaw chuck, 12” Face plate, 5 1/2” large steady rest with roller jaws, 2” follow rest, 4-way tools post, Foot brake Coolant system, and so much more list.
- ISO 9001 certified
- Large spindle bore 2-1/16”
- Heavy Duty spindle D1-6
- One-piece solid cast iron machine base
- Heavy Duty guideway width 10-1/4”
- Heavy Duty main motor 6 HP

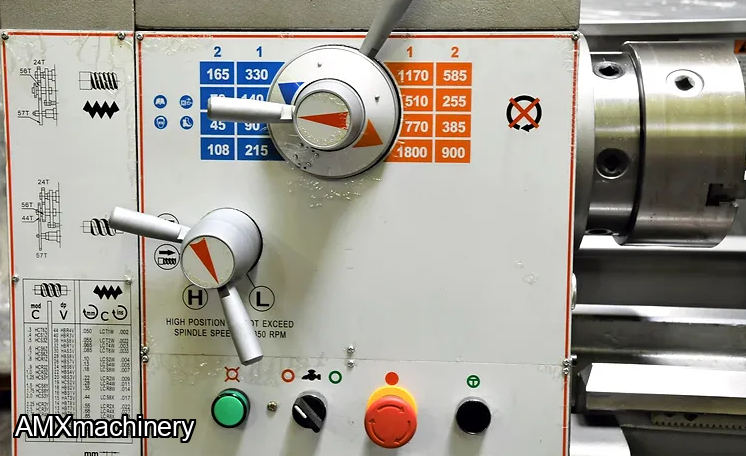

- 16 spindle speeds from 45-1,800 rpm, speeds: 45/ 75/ 90/ 130/ 160/ 195/ 210/ 260/ 350/ 390/ 600/ 690 / 790 / 910/ 1,200/ 1,800 rpm
- 45 kinds of inch threads, and 39 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Free SINO DRO; Installed
- Free Taper turning attachment; Installed
- Metal chuck guard with safety shut down when lifting chuck guard
- 8” 3-jaw chuck with one set reversible jaws
- 10” 4-jaw chuck
- 12” Face plate
- 5 1/2” large steady rest with roller jaws
- Oil pump on Apron for all guideways and leadscrews
- 2” follow rest
- Removeable gap

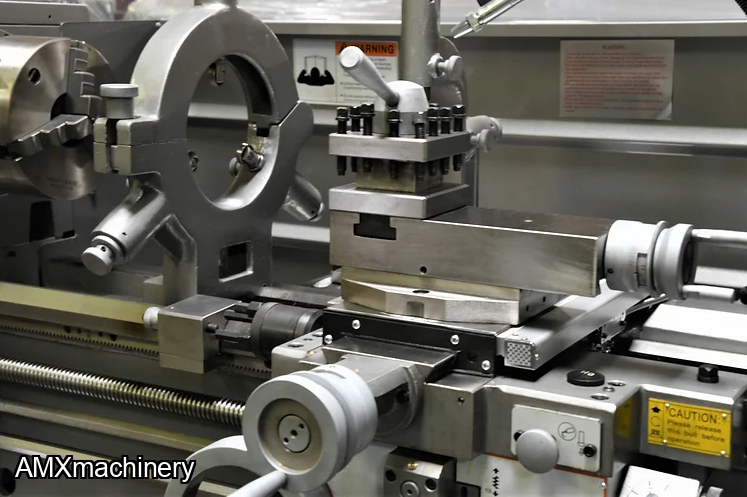

- 4-way tools post
- Foot brake
- Coolant system
- Halogen Work light
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
| Max. swing over bed | 14 7/8" |
| Max. length of workpiece | 40" |
| Max. swing over cross slide | 10 1/16" |
| Max. Swing in gap | 23 1/4" |
| Width of Bed | 10 1/4" |
| Effective length in gap to spindle | 8 1/2" |
| Effective length in gap to chuck jaws | 3 1/2" |
| Spindle bore | 2 1/16" D1-6 |
